  • High Temperature Double Sided Tapes
RoHS Compliant

Bertech High Temperature Double Sided Polyimide Tapes are made of 1 mil thick HN polyimide film with 1.5 mil of silicone adhesive coating on each side. They are available in widths of up to 20 inches. These tapes are packaged with a single PET Liner in a 36 yard-long roll on a 3 inch core. High Temperature Double Sided Polyimide Tapes are used for splicing of insulating layers, temporarily masking circuit boards, and coils. They offer outstanding thermal endurance with excellent puncture and tear resistance.

Custom sizes are available upon request.

Applications: Aerospace Assembly, Auto Industry, Electronic Assembly, Optic Cables, Photonics, Solar Panels, Solder Masking.

Part Number PPTDE series
Color Amber
Film Thickness 1.0 mil
Adhesive Thickness 1.5 mil on each side
Total Thickness 4 mil
Material Type Polyimide film
Adhesion to Steel 25 oz./in.
Tensile Strength 30 lbs./in.
Elongation 55%
Dielectric Strength 6200 Volts
Operating Temperature -100°F to 500°F
UNSPSC Code 31201503

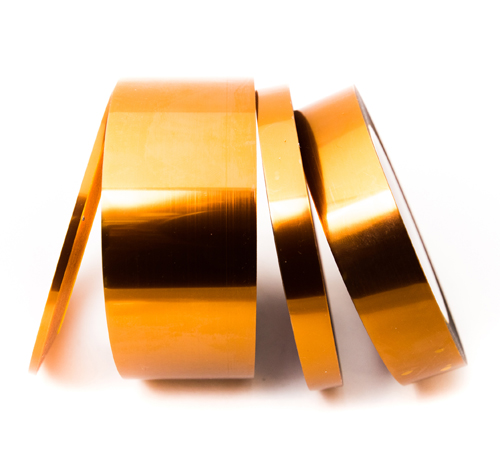

double sided polyimide tapes
  • Part Number
    Description
    Price
High Temperature Double Sided Polyimide Tapes
