  • ESD Polyester Tapes
RoHS Compliant

Bertech ESD Polyester Tapes are made from 1 mil thick polyester film with 1.5 mil of silicone adhesive. These tapes are designed for the masking of electronic devices that are sensitive to an electro-static charge. They are tear resistant and remove without leaving any residue. They are packaged in 72 yard-long rolls on a 3 inch core with an ESD symbol at the tab of the roll. These ESD Polyester Tapes are available in various widths of up to 18 inches. Available in blue, green, and clear colors.

Custom sizes are available upon request.

Applications: General Purpose Masking, Printed Circuit Board Masking, Powder Coating, Splicing

Part Number ESDBPT, ESDCPT and ESDGPT
Color Blue, Clear and Green
Total Thickness 2.5 Mil ±10%
Material Type Polyester
Resistivity 5x106 to 5x108
Adhesion to Steel 30 oz./in.
Tensile Strength 25 lbs./in.
Static Charge <150 Volts @ removal from roll
Maximum Temperature 180°F
UNSPSC Code 31201518

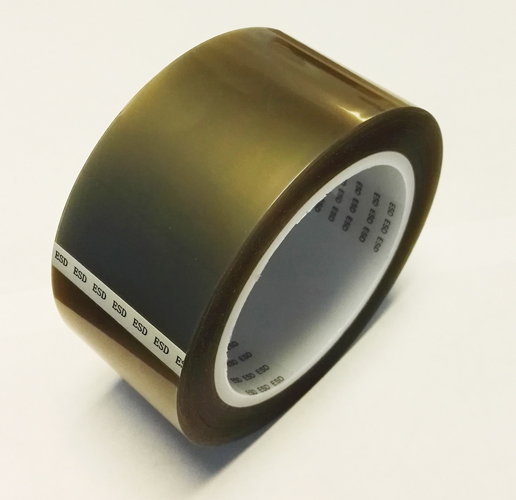

esd clear polyester tape

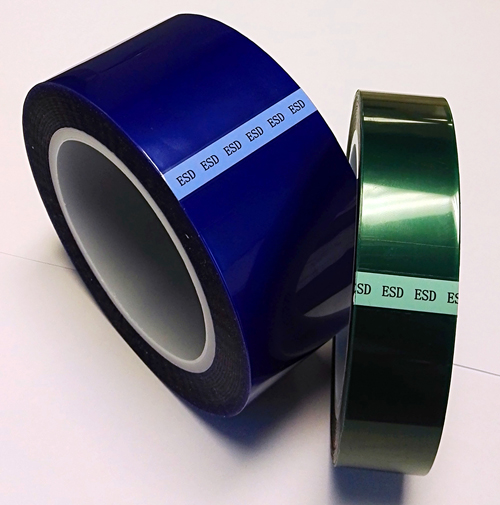

esd blue and green polyester tapes
  • Part Number
    Description
    Price
ESD Safe Blue Polyester Tapes
  • ESDBPT-1/4
    $4.00
  • ESDBPT-1/2
    $7.50
  • ESDBPT-3/4
    $11.00
  • ESDBPT-1
    $15.00
  • ESDBPT-2
    $29.00
ESD Safe Clear Polyester Tapes
  • ESDCPT-1/4
    $4.00
  • ESDCPT-1/2
    $7.50
  • ESDCPT-3/4
    $11.00
  • ESDCPT-1
    $15.00
  • ESDCPT-2
    $29.00
ESD Safe Green Polyester Tapes
  • ESDGPT-1/4
    $4.00
  • ESDGPT-1/2
    $7.50
  • ESDGPT-3/4
    $11.00
  • ESDGPT-1
    $15.00
  • ESDGPT-2
    $29.00
